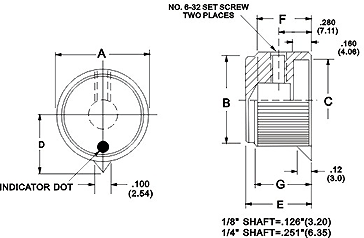

42026
|
Description |
|
Material: Aluminum |
|
Straight knurl formed pointer and dot indicator |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
G |
SHAFT HOLE |
42026-1 |
NATURAL |
12.7 |
11.4 |
11.0 |
8.89 |
13.7 |
11.4 |
11.9 |
3.2 |
42026-2 |
NATURAL |
12.7 |
11.4 |
11.0 |
8.89 |
13.7 |
11.4 |
11.9 |
6.4 |
42026-3 |
BLACK |
12.7 |
11.4 |
11.0 |
8.89 |
13.7 |
11.4 |
11.9 |
3.2 |
42026-4 |
BLACK |
12.7 |
11.4 |
11.0 |
8.89 |
13.7 |
11.4 |
11.9 |
6.4 |
42026-5 |
NATURAL |
19.0 |
17.5 |
15.7 |
11.9 |
13.7 |
11.4 |
11.9 |
6.4 |
42026-6 |
BLACK |
19.0 |
17.5 |
15.7 |
11.9 |
13.7 |
11.4 |
11.9 |
6.4 |
42026-7 |
NATURAL |
23.9 |
22.3 |
20.8 |
14.5 |
13.7 |
11.4 |
11.9 |
6.4 |
42026-8 |
BLACK |
23.9 |
22.3 |
20.8 |
14.5 |
13.7 |
11.4 |
11.9 |
6.4 |
|
|
|

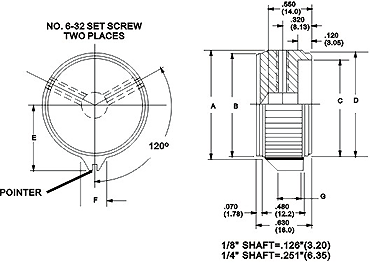

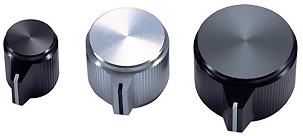

42028
|
Description |
|
Material: Aluminum |
|
Straight knurl with pointer and indicator line |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
G |
SHAFT HOLE |
42028-1 |
NATURAL |
12.7 |
11.4 |
9.65 |
11.4 |
9.40 |
5.08 |
8.89 |
3.2 |
42028-2 |
NATURAL |
12.7 |
11.4 |
9.65 |
11.4 |
9.40 |
5.08 |
8.89 |
6.4 |
42028-3 |
BLACK |
12.7 |
11.4 |
9.65 |
11.4 |
9.40 |
5.08 |
8.89 |
3.2 |
42028-4 |
BLACK |
12.7 |
11.4 |
9.65 |
11.4 |
9.40 |
5.08 |
8.89 |
6.4 |
42028-5 |
NATURAL |
19.0 |
17.8 |
15.0 |
17.8 |
13.2 |
6.09 |
9.90 |
6.4 |
42028-6 |
BLACK |
19.0 |
17.8 |
15.0 |
17.8 |
13.2 |
6.09 |
9.90 |
6.4 |
42028-7 |
NATURAL |
23.9 |
22.3 |
18.0 |
22.3 |
16.0 |
7.00 |
8.89 |
6.4 |
42028-8 |
BLACK |
23.9 |
22.3 |
18.0 |
22.3 |
16.0 |
7.00 |
8.89 |
6.4 |
TWO TONED |
|
|
|
|
|
|
|
|
42028-9 |
NTL & BLK |
12.7 |
11.4 |
9.65 |
11.4 |
9.40 |
5.08 |
8.89 |
3.2 |
42028-10 |
NTL & BLK |
12.7 |
11.4 |
9.65 |
11.4 |
9.40 |
5.08 |
8.89 |
6.4 |
42028-11 |
BLK & NTL |
12.7 |
11.4 |
9.65 |
11.4 |
9.40 |
5.08 |
8.89 |
3.2 |
42028-12 |
BLK & NTL |
12.7 |
11.4 |
9.65 |
11.4 |
9.40 |
5.08 |
8.89 |
6.4 |
42028-13 |
NTL & BLK |
19.0 |
17.8 |
15.0 |
17.8 |
13.2 |
6.09 |
9.90 |
6.4 |
42028-14 |
BLK & NTL |
19.0 |
17.8 |
15.0 |
17.8 |
13.2 |
6.09 |
9.90 |
6.4 |
42028-15 |
NTL & BLK |
23.9 |
22.3 |
18.0 |
22.3 |
16.0 |
7.00 |
8.89 |
6.4 |
42028-16 |
BLK & NTL |
23.9 |
22.3 |
18.0 |
22.3 |
16.0 |
7.00 |
8.89 |
6.4 |
|
|
|

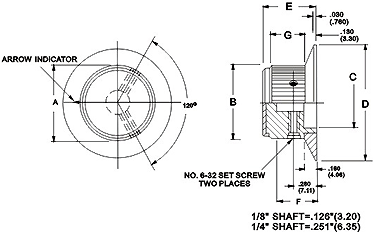

42029
|
Description |
|
Material: Aluminum |
|
Straight knurl with arrow head indicator on skirt |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
G |
SHAFT HOLE |
42029-1 |
NATURAL |
12.7 |
11.4 |
9.65 |
19.0 |
16.0 |
13.0 |
10.9 |
3.2 |
42029-2 |
NATURAL |
12.7 |
11.4 |
9.65 |
19.0 |
16.0 |
13.0 |
10.9 |
6.4 |
42029-3 |
BLACK |
12.7 |
11.4 |
9.65 |
19.0 |
16.0 |
13.0 |
10.9 |
3.2 |
42029-4 |
BLACK |
12.7 |
11.4 |
9.65 |
19.0 |
16.0 |
13.0 |
10.9 |
6.4 |
42029-5 |
NATURAL |
19.0 |
17.8 |
14.9 |
28.3 |
16.0 |
13.0 |
10.9 |
6.4 |
42029-6 |
BLACK |
19.0 |
17.8 |
14.9 |
28.3 |
16.0 |
13.0 |
10.9 |
6.4 |
BODY-TOP/SKIPT |
|
|
|
|
|
|
|
|
42028-7 |
BLK & NTL |
12.7 |
11.4 |
9.65 |
19.0 |
16.0 |
13.0 |
10.9 |
3.2 |
42028-8 |
BLK & NTL |
12.7 |
11.4 |
9.65 |
19.0 |
16.0 |
13.0 |
10.9 |
6.4 |
42028-9 |
BLK & NTL |
19.0 |
17.8 |
14.9 |
28.3 |
16.0 |
13.0 |
10.9 |
3.2 |
42028-10 |
BLK & NTL |
19.0 |
17.8 |
14.9 |
28.3 |
16.0 |
13.0 |
10.9 |
6.4 |
|
|
|

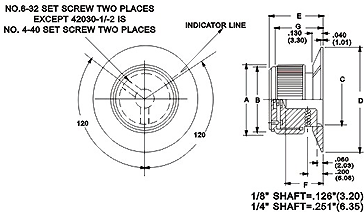

42030
|
Description |
|
Material: Aluminum |
|
Push to turn with line indicator on skirt |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
G |
42030-1 |
NATURAL |
12.7 |
11.4 |
9.65 |
18.8 |
19.0 |
13.0 |
17.0 |
42030-2 |
BLACK |
12.7 |
11.4 |
9.65 |
18.8 |
19.0 |
13.0 |
17.0 |
42030-3 |
NATURAL |
19.0 |
17.3 |
14.9 |
28.3 |
19.0 |
13.0 |
17.0 |
42030-4 |
BLACK |
19.0 |
17.3 |
14.9 |
28.3 |
19.0 |
13.0 |
17.0 |
42030-5 |
NATURAL |
23.9 |
22.3 |
16.5 |
36.6 |
19.0 |
13.0 |
17.0 |
42030-6 |
BLACK |
23.9 |
22.3 |
16.5 |
36.6 |
19.0 |
13.0 |
17.0 |
|
|
|

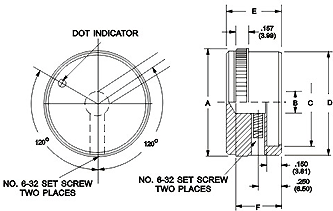

42031
|
Description |
|
Material: Aluminum |
|
Knurl grip with top dot indicator |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
SHAFT HOLE |
42031-1 |
NTL & BLK |
12.7 |
3.30 |
9.65 |
11.7 |
16.0 |
13.0 |
3.2 |
42031-2 |
NTL & BLK |
12.7 |
3.30 |
9.65 |
11.7 |
16.0 |
13.0 |
6.4 |
42031-3 |
NTL & BLK |
19.0 |
6.35 |
16.0 |
17.7 |
16.0 |
13.0 |
3.2 |
42031-4 |
NTL & BLK |
19.0 |
6.35 |
16.0 |
17.7 |
16.0 |
13.0 |
6.4 |
42031-5 |
NTL & BLK |
31.8 |
6.35 |
26.9 |
30.7 |
16.0 |
13.0 |
6.4 |
|
|
|

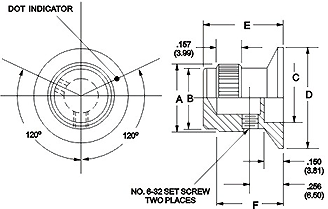

42032
|
Description |
|
Material: Aluminum |
|
Knurl grip with top dot indicator |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
SHAFT HOLE |
42032-1 |
NTL & BLK |
12.7 |
11.7 |
9.65 |
19.0 |
16.0 |
16.0 |
3.2 |
42032-2 |
NTL & BLK |
12.7 |
11.7 |
9.65 |
19.0 |
16.0 |
16.0 |
6.4 |
42032-3 |
NTL & BLK |
19.0 |
18.0 |
16.0 |
28.7 |
16.0 |
16.0 |
6.4 |
42032-4 |
NTL & BLK |
23.9 |
22.9 |
20.0 |
36.6 |
16.0 |
16.0 |
6.4 |
|
|
|

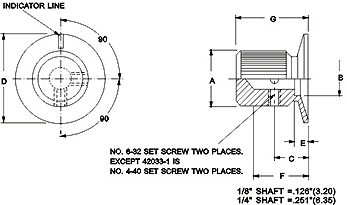

42033
|
Description |
|
Material: Aluminum, matte finish |
|
Straight knurl with indicator on skirt |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
G |
42033-1 |
BLACK MATTE |
9.7 |
7.1 |
6.5 |
12.7 |
2.54 |
11.9 |
15.0 |
42033-2 |
BLACK MATTE |
12.7 |
9.7 |
6.4 |
16.0 |
4.09 |
12.0 |
16.0 |
42033-3 |
BLACK MATTE |
15.7 |
9.7 |
9.7 |
25.4 |
4.09 |
16.0 |
20.6 |
|
|
|

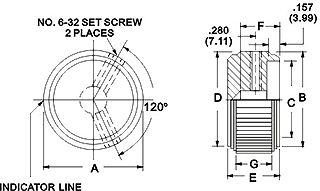

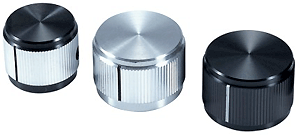

42034
|
Description |
|
Material: Aluminum |
|
Straight knurl with indicator on OD |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
G |
42034-1 |
NATURAL |
19.1 |
17.7 |
15.0 |
17.7 |
15.9 |
13.0 |
11.6 |
42034-2 |
BLACK |
19.1 |
17.7 |
15.0 |
17.7 |
15.9 |
13.0 |
11.6 |
42034-3 |
NATURAL |
24.1 |
22.7 |
17.7 |
22.7 |
15.9 |
13.0 |
11.6 |
42034-4 |
BLACK |
24.1 |
22.7 |
17.7 |
22.7 |
15.9 |
13.0 |
11.7 |
42034-5 |
NTL & BLK |
19.0 |
17.7 |
11.5 |
17.7 |
15.9 |
13.0 |
11.6 |
42034-6 |
BLK & NTL |
19.0 |
17.8 |
11.5 |
17.7 |
15.9 |
13.0 |
11.6 |
42034-7 |
NTL & BLK |
24.1 |
22.7 |
17.7 |
22.7 |
15.9 |
13.0 |
11.6 |
42034-8 |
BLK & NTL |
24.1 |
22.7 |
17.7 |
22.7 |
15.9 |
13.0 |
11.7 |
|
|
|

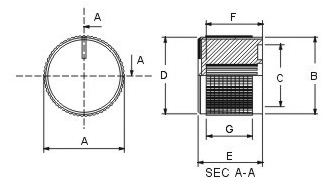

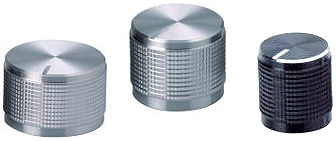

42035
|
Description |
|
Material: Aluminum shell with plastic insert |
|
Square serration with indicator line |
|
Available with several I.D. configurations |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
G |
42035-1 |
NATURAL |
15 |
14.4 |
10.9 |
14.4 |
16.1 |
14 |
11.5 |
42035-2 |
BLACK |
15 |
14.4 |
10.9 |
14.4 |
16.1 |
14 |
11.5 |
42035-3 |
NATURAL |
19.9 |
19.1 |
16 |
19.3 |
16.1 |
14 |
11.5 |
42035-4 |
BLACK |
19.9 |
19.1 |
16 |
19.3 |
16.1 |
14 |
11.5 |
42035-5 |
NATURAL |
25 |
24.2 |
20.9 |
24.3 |
16.1 |
14 |
11.5 |
42035-6 |
BLACK |
25 |
24.2 |
20.9 |
24.3 |
16.1 |
14 |
11.5 |
|
|
|

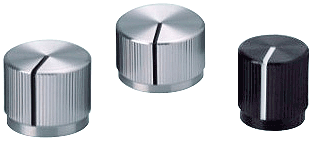

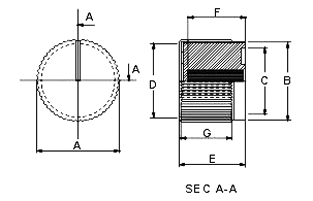

42036
|
Description |
|
Material: Aluminum shell with plastic insert |
|
Top & side indicator line |
|
Available with several I.D. configurations |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
G |
42036-1 |
NATURAL |
14.9 |
13.9 |
10.9 |
13.3 |
16.1 |
14 |
12.4 |
42036-2 |
BLACK |
14.9 |
13.9 |
10.9 |
13.3 |
16.1 |
14 |
12.4 |
42036-3 |
NATURAL |
19.8 |
18.7 |
15.9 |
18.2 |
16.1 |
14 |
12.4 |
42036-4 |
BLACK |
19.8 |
18.7 |
15.9 |
18.2 |
16.1 |
14 |
12.4 |
42036-5 |
NATURAL |
24.9 |
23.9 |
20.9 |
22.8 |
16.1 |
14 |
12.4 |
42036-6 |
BLACK |
24.9 |
23.9 |
20.9 |
22.8 |
16.1 |
14 |
12.4 |
|
|
|

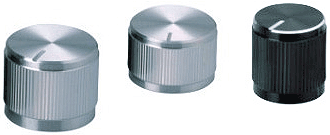

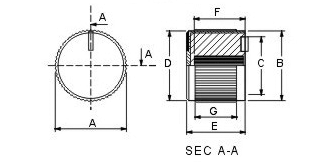

42037
|
Description |
|
Material: Aluminum shell with plastic insert |
|
Top inlay with indicator line |
|
Available with several I.D. configurations |
PART NO. |
COLOR |
A |
B |
C |
D |
E |
F |
G |
42037-1 |
NATURAL |
14.9 |
14.4 |
10.9 |
14.4 |
16.1 |
14 |
11.5 |
42037-2 |
BLACK |
14.9 |
14.4 |
10.9 |
14.4 |
16.1 |
14 |
11.5 |
42037-3 |
NATURAL |
19.9 |
19.1 |
15.9 |
19.3 |
16.1 |
14 |
11.5 |
42037-4 |
BLACK |
19.9 |
19.1 |
15.9 |
19.3 |
16.1 |
14 |
11.5 |
42037-5 |
NATURAL |
24.9 |
24.2 |
20.9 |
24.3 |
16.1 |
14 |
11.5 |
42037-6 |
BLACK |
24.9 |
24.2 |
20.9 |
24.3 |
16.1 |
14 |
11.5 |
|
|
