CONTROL / ALUMINUM KNOBS

OEP Aluminum and Metal Knobs are precision machined per your specific guidelines.
Hundreds of standard styles can be customized in a variety of ways: different knurling (diamond, straight, or no knurls), several anodizing colors and textures, many hole sizes/configurations, indicator line colors, and more. Applications include medical, dental, diagnostic, control, instrument, adjustment, tuning, etc.

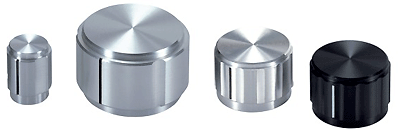

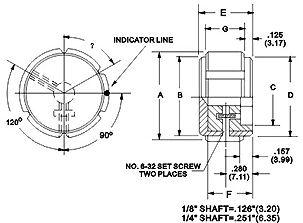

42001

Metal Knobs

Description
Material: Aluminum shell with plastic insert
Finish: Anodized black and natural
With two No.6-32 set screws
6 flute design with indicator line
Solid aluminum knob is available
PART NO.
COLOR
A
B
C
D
E
F
G
42001-1
NATURAL
12.7
10.9
9.65
10.9
16.0
13.0
10.9
42001-2
BLACK
12.7
10.9
9.65
10.9
16.0
13.0
10.9
42001-3
NATURAL
19.0
16.2
15.0
16.8
16.0
13.0
10.9
42001-4
BLACK
19.0
16.2
15.0
16.8
16.0
13.0
10.9
42001-5
NATURAL
23.9
20.8
18.0
20.8
16.0
13.0
10.9
42001-6
BLACK
23.9
20.8
18.0
20.8
16.0
13.0
10.9

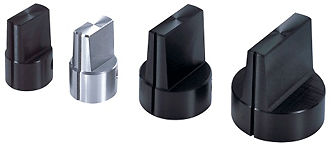

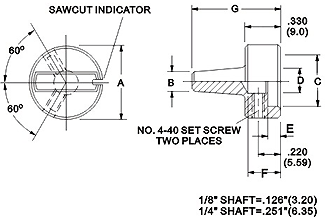

42002

Metal Knobs

Description
Material: Aluminum
Finish: Anodized color by request
With two 4-40 set screws
Control knob with sawcut indicator
PART NO.
COLOR
A
B
C
D
E
F
G
42002-1
NATURAL
12.7
5.08
9.40
3.30
3.05
9.0
19.0
42002-2
NATURAL
12.7
5.08
9.40
6.35
3.05
9.0
19.0
42002-3
BLACK
12.7
5.08
9.40
3.30
3.05
9.0
19.0
42002-4
BLACK
12.7
5.08
9.40
6.35
3.05
9.0
19.0
42002-5
NATURAL
15.8
5.08
9.90
3.30
3.05
9.0
19.0
42002-6
NATURAL
15.8
5.08
9.90
6.35
3.05
9.0
19.0
42002-7
BLACK
15.8
5.08
9.90
3.30
3.05
9.0
19.0
42002-8
BLACK
15.8
5.08
9.90
6.35
3.05
9.0
19.0
42002-9
NATURAL
19.0
5.08
13.0
6.35
3.05
9.0
22.0
42002-10
BLACK
19.0
5.08
13.0
6.35
3.05
9.0
22.0
42002-11
NATURAL
23.9
5.08
18.0
6.35
3.05
9.0
22.0
42002-12
BLACK
23.9
5.08
18.0
6.35
3.05
9.0
22.0

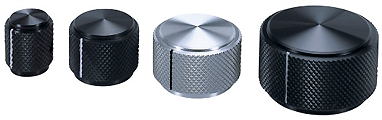

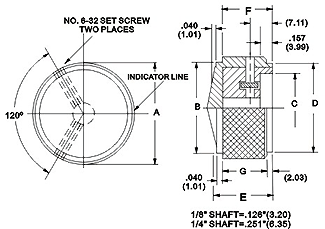

42003

Metal Knobs

Description
Material: Aluminum shell with plastic insert
Finish: Anodized black and natural
With two No.6-32 set screws
Diamond knurl with indicator line
Solid aluminum knob is available
PART NO.
COLOR
A
B
C
D
E
F
G
42003-1
NATURAL
12.7
10.9
9.65
10.9
16.0
13.0
11.9
42003-2
BLACK
12.7
10.9
9.65
10.9
16.0
13.0
11.9
42003-3
NATURAL
19.0
16.8
15.0
16.8
16.0
13.0
11.9
42003-4
BLACK
19.0
16.8
15.0
16.8
16.0
13.0
11.9
42003-5
NATURAL
23.9
20.8
18.0
20.8
16.0
13.0
11.9
42003-6
BLACK
23.9
20.8
18.0
20.8
16.0
13.0
11.9
42003-7
NATURAL
31.8
28.2
24.9
28.2
19.0
16.0
15.0
42003-8
BLACK
31.8
28.2
24.9
28.2
19.0
16.0
15.0

42003

Metal Knobs

Description
Material: Aluminum shell with plastic insert
Finish: Anodized black and natural
With two No.6-32 set screws
Diamond knurl with indicator line
Solid aluminum knob is available
PART NO.
COLOR
A
B
C
D
E
F
G
42003-1
NATURAL
12.7
10.9
9.65
10.9
16.0
13.0
11.9
42003-2
BLACK
12.7
10.9
9.65
10.9
16.0
13.0
11.9
42003-3
NATURAL
19.0
16.8
15.0
16.8
16.0
13.0
11.9
42003-4
BLACK
19.0
16.8
15.0
16.8
16.0
13.0
11.9
42003-5
NATURAL
23.9
20.8
18.0
20.8
16.0
13.0
11.9
42003-6
BLACK
23.9
20.8
18.0
20.8
16.0
13.0
11.9
42003-7
NATURAL
31.8
28.2
24.9
28.2
19.0
16.0
15.0
42003-8
BLACK
31.8
28.2
24.9
28.2
19.0
16.0
15.0

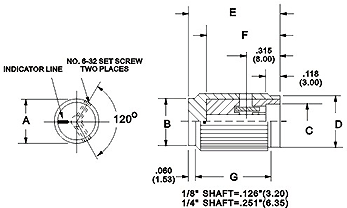

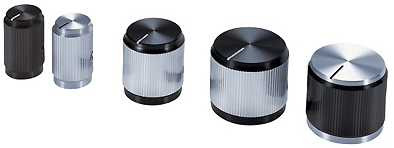

42004

Metal Knobs

Description
Material: Aluminum shell with plastic insert
Finish: Anodized black and natural
With two No.6-32 set screws
Control knob with straight knurl and top line indicator
Solid aluminum knob is available
PART NO.
COLOR
A
B
C
D
E
F
G
42004-1
NATURAL
12.7
10.9
9.9
11.9
20.0
16.0
15.5
42004-2
BLACK
12.7
10.9
9.9
11.9
20.0
16.0
15.5
42004-3
NATURAL
19.0
17.3
15.0
18.0
20.0
16.0
15.5
42004-4
BLACK
19.0
17.3
15.0
18.0
20.0
16.0
15.5
42004-5
NATURAL
23.6
22.1
18.0
22.9
20.0
16.0
15.5
42004-6
BLACK
23.6
22.1
18.0
22.9
20.0
16.0
15.5

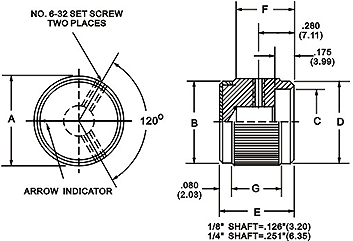

42005

Metal Knobs

Description
Material: Aluminum shell with plastic insert
Finish: Anodized color by request
With two No.6-32 set screws
Straight knurl with arrow head indicator
Solid aluminum knob is available
PART NO.
COLOR
A
B
C
D
E
F
G
42005-1
NATURAL
12.7
11.4
9.65
11.4
16.0
13.0
11.7
42005-2
BLACK
12.7
11.4
9.65
11.4
16.0
13.0
11.7
42005-3
NATURAL
19.0
17.3
15.0
17.8
16.0
13.0
11.7
42005-4
BLACK
19.0
17.3
15.0
17.8
16.0
13.0
11.7

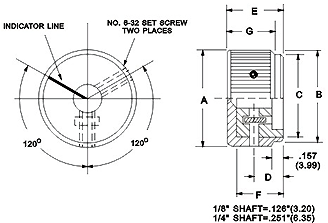

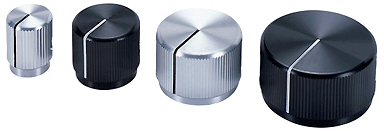

42006

Metal Knobs

Description
Material: Aluminum shell with plastic insert
Finish: Anodized black and natural
With two No.6-32 set screws
Straight knurl with top and side indicator
Solid aluminum knob is available
PART NO.
COLOR
A
B
C
D
E
F
G
42006-1
NATURAL
12.7
11.4
9.65
7.11
16.0
13.0
13.5
42006-2
BLACK
12.7
11.4
9.65
7.11
16.0
13.0
13.5
42006-3
NATURAL
19.0
17.8
14.9
7.11
16.0
13.0
13.5
42006-4
BLACK
19.0
17.8
14.9
7.11
16.0
13.0
13.5
42006-5
NATURAL
23.9
22.3
18.0
7.11
16.0
13.0
13.5
42006-6
BLACK
23.9
22.3
18.0
7.11
16.0
13.0
13.5
42006-7
NATURAL
31.7
30.5
24.9
7.11
16.0
13.0
13.5
42006-8
BLACK
31.7
30.5
24.9
7.11
16.0
13.0
13.5

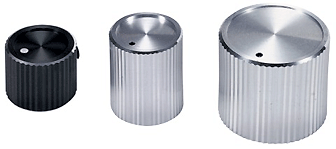

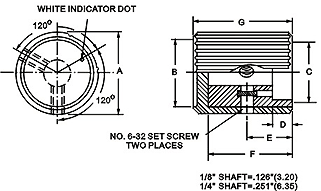

42007

Metal Knobs

Description
Material: Aluminum shell with plastic insert
Finish: Anodized black
With two No.6-32 set screws
Diamond trim cut with dot indicator
Solid aluminum knob is available
Black or natural color are available
PART NO.
A
B
C
D
E
F
G
42007-1
9.4
7.11
7.11
2.54
5.08
6.1
7.6
42007-2
9.4
7.11
7.11
2.54
5.08
6.1
11.4
42007-3
12.7
10.40
9.65
3.05
7.11
13.0
15.2
42007-4
19.0
16.50
14.90
3.05
7.11
13.0
15.2

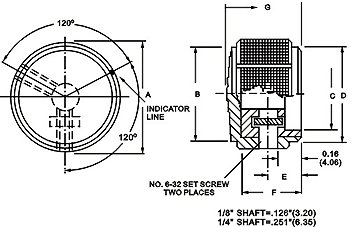

42008

Metal Knobs

Description
Material: Aluminum shell with plastic insert
Finish: Anodized black and natural
With two No.6-32 set screws
Square serration with indicator line
Solid aluminum knob is available
PART NO.
COLOR
A
B
C
D
E
F
G
42008-1
NATURAL
12.7
10.9
9.65
10.9
7.11
13.0
16.0
42008-2
BLACK
12.7
10.9
9.65
10.9
7.11
13.0
16.0
42008-3
NATURAL
19.0
16.5
14.9
16.7
7.11
13.0
16.0
42008-4
BLACK
19.0
16.5
14.9
16.7
7.11
13.0
16.0
42008-5
NATURAL
23.9
20.8
18.0
21.0
7.11
13.0
16.0
42008-6
BLACK
23.9
20.8
18.0
21.0
7.11
13.0
16.0
42008-7
NATURAL
31.7
28.1
24.8
28.1
7.11
13.0
19.0
42008-8
BLACK
31.7
28.1
24.8
28.1
7.11
13.0
19.0

42009

Metal Knobs

Description
Material: Aluminum shell with plastic insert
Finish: Anodized black or natural
With two No.6-32 set screws
Straight knurl on OD, white indicator line on top
Solid aluminum knob is available
PART NO.
D
d1
d2
H
h1
h2
42009-1
18.6
6
13.0
12
3
9.5
42009-2
22.8
6
14.0
13
3
11.0
42009-3
32.5
6
15.5
14
3
12.5
42009-4
38.4
6
33.0
16
3
13.5

42010

Metal Knobs

Description
Material: Plastic insert with aluminum cap
With lateral screw fixing
With indicator line on top
Solid aluminum knob is available
PART NO.
D
d
H
h
42010-1
12
4
7
5.6
42010-2
12
6
7
5.6
